Household Drinking Water Filtration

Our household hollow fiber membrane filters are made using polysulfone (PSF). The porous surface of the membrane is small in diameter to effectively filter contaminants like micro-particles and micro-organisms. We use a hydrophilic filter that achieves high flux and chlorine resistance without added chemical moisturizing agents, odorless and no aftertaste. These filters are safe for household use and retain healthy mineral compounds like calcium and magnesium.
ZISECO® membrane filters can be installed in upflow or downflow water filtration systems in home kitchens, household water filtration systems, or commercial restaurants.

ZISECO® Filtration Efficiency

ZISECO® Filtration Efficiency

ZISECO® Flux Capacity

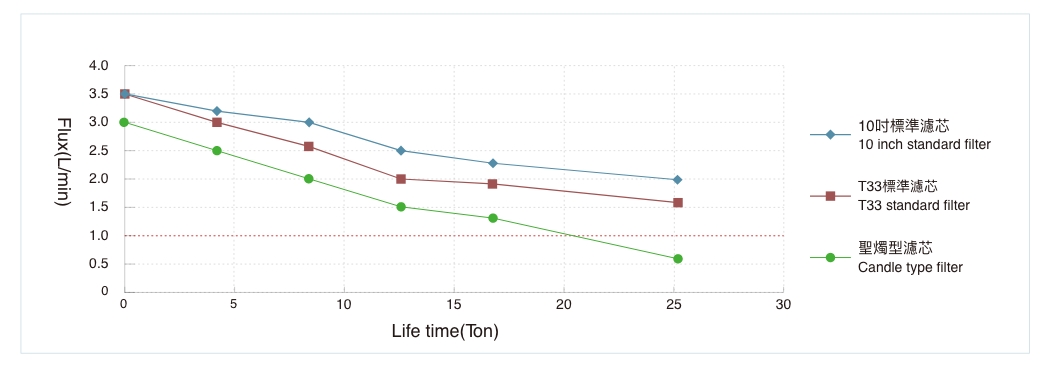

Modular Lifecycle Test & Performance Curve

Text Sample: standard 10 inch filter, T33, standard filter, candle-type filter
Water Source: municipal water supply
Turbidity: 1.9NTU
Operating Pressure: 1kg/cm2
Operating Temperature: 25℃

The actual volume of water filtered depends on local water quality in each region.
The degree of raw water pollution will affect the service life of the filter element.

Polysulfone (PSF) Hollow Fiber Membrane Filters for Household Water Filtration

20 inch Big Filter

Y-HA489B00

10 inch Big Filter

Y-HA236B00

20 inch Standard Filter

Y-HA212B00

10 inch Standard Filter

Y-HK093B00

Candle-type Filter

Y-HK048E00

Exposed Candle-type Filter

Y-HK048E02

Membrane Material:Polysulfone (PSF)
Filter Area:4.89 m2
Filter Form:Outside-In
Initial Flow Rate :≧ 30L/min
Outlet Pipe Size:1”
Design Life Time:300tons
Dimensions:Φ112mm x 504mm
Membrane Material:Polysulfone (PSF)
Filter Area:2.36m2
Filter Form:Outside-In
Initial Flow Rate :≧ 20L/min
Outlet Pipe Size:3/4”
Design Life Time:100tons
Dimensions:Φ112mm x 250mm
Filter Area:Polysulfone (PSF)
Filter Area:2.12m2
Filter Form:Outside-In
Initial Flow Rate :≧ 20L/min
Outlet Pipe Size:1”
Design Life Time:100tons
Dimensions:Φ67mm x 508mm
Filter Area:Polysulfone (PSF)
Filter Area:0.93m2
Filter Form:Outside-In
Initial Flow Rate :≧ 3.5L/min
Outlet Pipe Size:1/4”
Design Life Time:10,000L
Dimensions:Φ69 x 247mm
Filter Area:Polysulfone (PSF)
Filter Area:0.48m2
Filter Form:Outside-In
Initial Flow Rate :≧ 2.5L/min
Outlet Pipe Size:1/4”
Design Life Time:5,000L
Dimensions:Φ50 x 230mm
Filter Area:Polysulfone (PSF)
Filter Area:0.48m2
Filter Form:Outside-In
Initial Flow Rate :≧ 2.5L/min
Outlet Pipe Size:1/4”
Design Life Time:5,000L
Dimensions:Φ50 x 230mm

Applications

Home Water Purifiers
Household Water Filtration Systems
Commercial Restaurant Water Filtration Systems

Caution:

  1. Product specifications and features are subject to change without advance notice.
  2. The specification values indicate measurements made by ZIG SHENG and are not guaranteed values.
  3. The data presented above only reflects the flow rate when water is flowing through the membrane module. The rate may be lower when used in combination with other filter materials.
  4. The filtration efficiency of this product indicates the performance of the module as a single filtration element. Filtration efficiency may vary due to mechanical leaks when used in conjunction with other elements in a filtration assembly.
  5. Use under high pressure or temperature can cause deformation or breakage.
  6. Please see that the product is prevented from freezing, which can rupture the casing and/or the module.
  7. Operating limits:  Pressure : 1~4 kg/cm2  Temperature : 4~40℃
  8. When using this product, please comply with all pertinent laws and regulations, if any, in the field of application.
